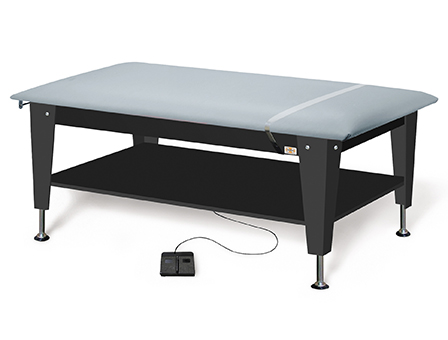

4723 ADA Hi-Lo Power Plinth Table

weight capacity quickship Bariatric wheelchair
  • Bariatric 600 lb lift capacity.
  • Motorized table lowers to 20” for wheelchair transfer.
       Elevates up to 30” high.
  • Sturdy black powder-coated steel frame with black
       laminate storage shelf.
  • Electrically activated hydraulic cylinders are built into
       (4) corner telescoping legs.
  • Legs are black powder-coated and equipped with levelers
       for uneven floors.
  • Hands-free foot control operation.
  • Vinyl upholstered tops with 2” high-density foam.
  • 110 V, 60 Hz, 2.4 Amps
  • Upholstery: Choice of Pro-Form™ vinyl colors.

  • English
  • Metric

Weight Capacity: 600 lb

ITEM #
LENGTH
WIDTH
HEIGHT
4723
72"
30"
20" - 30"

Weight Capacity: 272 kg

ITEM #
LENGTH
WIDTH
HEIGHT
4723
183 cm
76 cm
51 - 76 cm

4723

Shown with Option: 27 – Paper Dispenser & Cutter

Options:
  • 27 – Paper Dispenser &
            Cutter Combo
  • 32 – Full Size Pillow
  • 35 – Small Pillow




Colors:
vinyl swatches

CAL133 - Boston Fire Rated tops are available at an upcharge in Pro-FORM™ vinyl only. Specify "BF" when ordering.

Color accuracy may vary according to your monitor's color settings. Color samples may be obtained from Customer Service.
