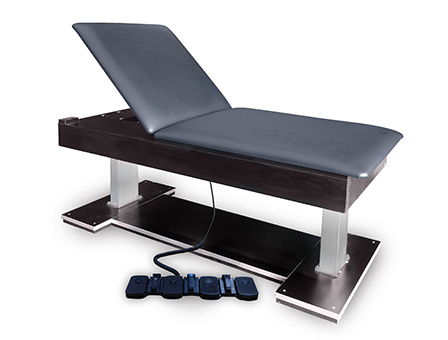

32″x78″ Bariatric Economy Dual-Lift Electric Hi-Lo Treatment Table with Power Backrest

SKU: 4797 Category

Clear Selections
Quantity:

Description

  • Extra-wide 32″ top accommodates larger patients up to 600 lbs.
  • Power height motorized elevation from 22″ wheelchair height to 31″ high.
  • Two direct-drive synchronized lift actuators provide unsurpassed power.
  • Motorized Power Backrest elevates 0° to 75° for ease of patient positioning.
  • Convenient Foot Control operation.
  • 2″ High-Density urethane foam top for patient comfort.
  • Black laminate frame and base plate, with aluminum trim and levelers.
  • Hospital grade plug. 110V, 60Hz, 1.3 Amps.
  • Upholstery: Choice of (18) standard vinyl colors.

Additional information

Upholstery Color

Black V23 (Pro-FORM), Navy V19 (Pro-FORM), Dove Gray V20 (Pro-FORM), Forest Green V21 (Pro-FORM), Deep Wine V22 (Pro-FORM), American Beauty V24 (Pro-FORM), Claret V25 (Pro-FORM), Royal Blue V26 (Pro-FORM), Regimental Blue V28 (Pro-FORM), Burgundy V11 (ComfortPLUS), Oak Brown V12 (ComfortPLUS), Rodeo Tan V13 (ComfortPLUS), Nordic Blue V14 (ComfortPLUS), Slate Blue V15 (ComfortPLUS), Black V16 (ComfortPLUS), Gray V17 (ComfortPLUS), Grotto Green V18 (ComfortPLUS)

Measurements

Weight Capacity: 600 lbs. (272kg)

MODEL # LENGTH WIDTH HEIGHT Vinyl
4797* 78″(198cm) 32″(81cm) 22″ – 31″(56 – 79cm) Custom

Options

Option SKU
Paper Dispenser & Cutter A27

Troubleshooting

  1. Check that all connections are secure, and that the unit is plugged into the wall.
  2. Check that the green light on the control box is on, if it is not, there is no power to the system.
  3. Verify that the wall outlet is providing power, if it is, then the control box needs to be replaced.
  4. Email the serial number of your product to techsupport@hausmann.com and request the part number for the control box.

  1. Check the foot switch cord for damage (exposed wires, pinched points, etc.)
  2. Check the connection of the foot switch into the control box, the plug needs to be fully inserted to operate correctly.
  3. Press on the foot switch and the control box should make a “Click” sound. If no sound is heard, it could be a non-functioning foot switch.
  4. Email the serial number of your product to techsupport@hausmann.com and request the part number for the foot switch.

  1. If it was just working, then wait 15 minutes to let it cool off and try again.
  2. Check the connection between the control box and the actuators.
  3. If there is greater than a 1” height difference between each actuator, remove the tabletop.
  4. Reset the control box by holding down both up and down buttons on the footswitch at the same time for 10 seconds. Then release both buttons
  5. Press and hold the down button. Both columns will move all the way down and bottom out, then travel up about 1”. Release the down button. Now both columns are synchronized to the same height.
  6. Test the unit by cycling it up and down a couple of times.
  7. If this does not resolve the issue, remove the mat if you have not already.
  8. Unplug one of the actuators from the control box and attempt to raise/lower the actuator
  9. Repeat step 7 with the other actuator
  10. If the actuator moves by itself, the actuator is in good working condition. If it does not, email the serial number of your product to techsupport@hausmann.com and request the part number for the actuator.
  11. If both actuators move my themselves, then the control box must be replaced. Email the serial number of your product to techsupport@hausmann.com and request the part number for the control box.

How to Buy

As a manufacturer, Hausmann only sells to Medical Dealers.
Please contact us to find a local dealer.
