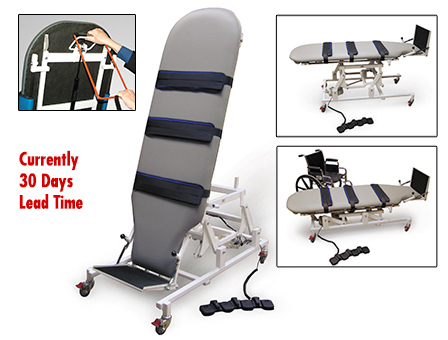

Model 6058
Wheelchair Accessible Hi-Lo Tilt Table

quick ship weight capacity wheelchair
  • Unique wheelchair accessible design is ideal for rehabilitation or nursing home use.
  • Electric operated actuators provide quick and smooth control of the tilt and height adjustments.
  • Electric Hi-Lo lift mechanism adjusts from 19" low wheelchair height to 33" high.
  • Tilts from horizontal to 90°. Unit must be raised to maximum height before tilting.
  • Easy-to-read tilt indicator on both sides.
  • Pivoting footboard with rubber tread. Angle of the footboard is adjustable with spring loaded dual controls.
  • "Hands-Free" foot control operation.
  • Includes unique emergency tilt release handle that manually lowers tilted table back to horizontal position.
  • Comfortable 76" x 26" cushioned top is available in Dove Gray vinyl.
  • (3) Safety straps with "hook and loop" closures.
  • (4) 3" dia. swiveling locking casters.
  • Heavy-duty steel frame is cream powder coated epoxy finish.
  • 110V, 60Hz, 3.5 amps. Hospital Grade Plug.
  • Not designed for cardiac testing use.
  • English
  • Metric

Weight Capacity: 350 lbs.

MODEL #
LENGTH
WIDTH
HEIGHT
6058
76"
26"
19" - 33"

Weight Capacity: 158 kg

MODEL #
LENGTH
WIDTH
HEIGHT
6058
193 cm
66 cm
48 - 84 cm

6058
