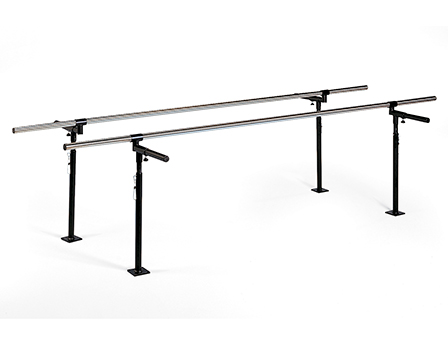

Models 1340,1341, 1342, 1343, 1345, 1346 Floor Mounted Parallel Bars

QuickShip weight capacity wheelchair
  • (4) Floor-mounted uprights with mounting plates. Floor fasteners not included.
  • (6) uprights for bars 14’ or longer.
  • Width adjusts from 15” to 28” wide.
  • NEW Secure Lock System provides even more stability to our sturdy uprights.
  • 1 ½” diameter stainless steel handrails.
  • Heavy gauge steel base plates, uprights and fittings. Black powder coated protective finish.
  • Each upright telescopes in 1 ½” increments and locks into (10) height positions with fail-safe ergonomic locking pin.
  • Width adjusts with triangular control knobs on each upright.
  • English
  • Metric

Weight Capacity: 400 lbs.

MODEL #
LENGTH
WIDTH
HEIGHT
1340
10'
15" - 28"
29" - 42"
1341 (not shown)
7'
15" - 28"
29" - 42"
1342 (not shown)
12'
15" - 28"
29" - 42"
1343 (not shown)
14'
15" - 28"
29" - 42"
1344 (not shown)
16'
15" - 28"
29" - 42"
1345 (not shown)
18'
15" - 28"
29" - 42"
1346 (not shown)
20'
15" - 28"
29" - 42"

Weight Capacity: 181 kg

MODEL #
LENGTH
WIDTH
HEIGHT
1340
305 cm
38 - 71 cm
74 - 107 cm
1341 (not shown)
213 cm
38 - 71 cm
74 - 107 cm
1342 (not shown)
366 cm
38 - 71 cm
74 - 107 cm
1343 (not shown)
427 cm
38 - 71 cm
74 - 107 cm
1344 (not shown)
488 cm
38 - 71 cm
74 - 107 cm
1345 (not shown)
549 cm
38 - 71 cm
74 - 107 cm
1346 (not shown)
610 cm
38 - 71 cm
74 - 107 cm

1340
