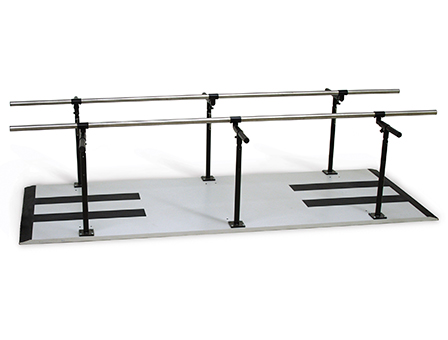

Model 1386, 1387 Bariatric Parallel Bars, Height and Width Adjustable

QuickShip weight capacity Bariatric wheelchair
  • Designed to accommodate Bariatric patients. 600 lb. weight capacity.
  • 10 ft. long gray laminate platform with anti-slip surface treads and tapered ends for wheelchair use.
  • (6) steel uprights.
  • NEW Secure Lock System provides even more stability to our sturdy uprights.
  • Width adjusts from 22" to 35".
  • 38” standard clearance between uprights.
  • 1 ½" diameter stainless steel handrails.
  • Heavy gauge steel base plates, uprights and fittings. Black powder coated protective finish.
  • Each upright telescopes in 1 ½" increments and locks into (10) height positions with fail-safe ergonomic locking pin.
  • Width adjusts with triangular control knobs on each upright.
  • English
  • Metric

Weight Capacity: 600 lbs.

MODEL #
LENGTH
WIDTH*
HEIGHT
1386
10'
22" - 35"
29" - 42"
1387 (not shown)
7'
22" - 35"
29" - 42"
*Platform is 45" wide.

Weight Capacity: 272 kg

MODEL #
LENGTH
WIDTH*
HEIGHT
1386
305 cm
56 - 89 cm
74 - 107 cm
1387 (not shown)
213 cm
56 - 89 cm
74 - 107 cm
*Platform is 114 cm wide.
