Models 1390, 1391, 1392 Height & Width Adjustable Parallel Bars

QuickShip weight capacity wheelchair 3mm
  • NEW Secure Lock System provides even more stability to our sturdy uprights.
  • Width adjusts from 15" to 28" with ergonomic control knobs on each upright.
  • 30" clearance between uprights.
  • Satin-finish hardwood platform with tapered hardwood ends for easy wheelchair access.
  • (2) "anti-slip" treads on each end.
  • 1 ½" diameter one-piece stainless steel handrails.
  • Heavy gauge black powder coated steel uprights and fittings.
  • Each upright telescopes up in 1 ½" increments and locks into (10) height positions with fail-safe ball-tip locking pin.
  • 3mm Top edge for greater durability.
  • English
  • Metric

Weight Capacity: 400 lbs.

MODEL #
LENGTH
WIDTH
HEIGHT
1390
10'
15" - 28"
29" - 42"
1391 (not shown)
7'
15" - 28"
29" - 42"
1392 (not shown)
12'
15" - 28"
29" - 42"
*Platform is 38" wide

Weight Capacity: 181 kg

MODEL #
LENGTH
WIDTH*
HEIGHT
1390
305 cm
38 - 71 cm
74 - 107 cm
1391 (not shown)
213 cm
38 - 71 cm
74 - 107 cm
1392 (not shown)
366 cm
38 - 71 cm
74 - 107 cm
*Platform is 97 cm wide

1390

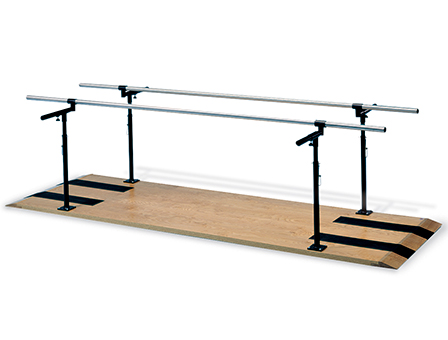

Model 1390

Options:
  • 62* – Abduction Board
  • 63* – Non-slip Matting

*Factory Installed.
