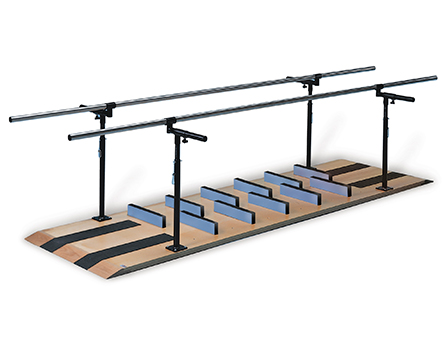

Model 1393 Patented Ambulation and Mobility Platform

QuickShip weight capacity
  • U.S. Patent No. 5,924,960.
  • Width adjusts from 15” to 28” with ergonomic control knobs on each upright.
  • NEW Secure Lock System provides even more stability to our sturdy uprights.
  • 30” clearance between uprights.
  • Satin-finish hardwood platform with tapered hardwood ends for easy wheelchair access.
  • (2) “anti-slip” treads on each end.
  • 1 ½” diameter one-piece stainless steel handrails.
  • Heavy gauge black powder coated steel uprights and fittings.
  • Each upright telescopes up in 1 ½” increments and locks into (10) height positions with fail-safe ball-tip
    locking pin.
  • Placement Ladder consists of (11) variably placed ladder steps.
  • Balance Beam 65L x 6W x 3H with non-slip treads.
  • Apparatus has dowel pins that fit into pre-drilled holes on platform surface.
  • English
  • Metric

Weight Capacity: 400 lbs.

MODEL #
LENGTH
WIDTH*
HEIGHT
1393
10'
15" - 28"
29" - 42"
*Platform is 38" wide

Weight Capacity: 181 kg

MODEL #
LENGTH
WIDTH*
HEIGHT
1393
305 cm
38 - 71 cm
74 - 107 cm
*Platform is 97 cm wide

1393
