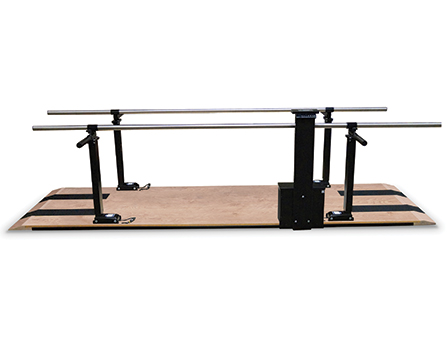

Model 1396 Power Height Parallel Bars

QuickShip weight capacitywheelchair
  • Motorized height adjustment from 29 to 44 high.
  • (4) Direct-drive synchronized lifting columns.
  • Control panel located near entry end of bars.
  • Push button controls and digital bar height readout.
  • 1 ½ dia. Stainless Steel handrails.
  • Width adjusts manually from 15 to 28 wide with easy-to-use control knobs.
  • Width between uprights is 26 ½.
  • 10 Satin-finish hardwood platform.
  • Tapered ends with anti-slip tread for easy wheelchair access.
  • Control box is double insulated for safety and equipped with 2-prong plug and cord.
  • 110V, 60Hz, 2.5 Amps.
  • English
  • Metric

Weight Capacity: 400 lbs.

MODEL #
LENGTH
WIDTH*
HEIGHT
1396
10'
15" - 28"
29" - 44"
*Platform is 38" wide

Weight Capacity: 181 kg

MODEL #
LENGTH
WIDTH*
HEIGHT
1396
305 cm
38 - 97 cm
74 -112 cm
*Platform is 97 cm wide
