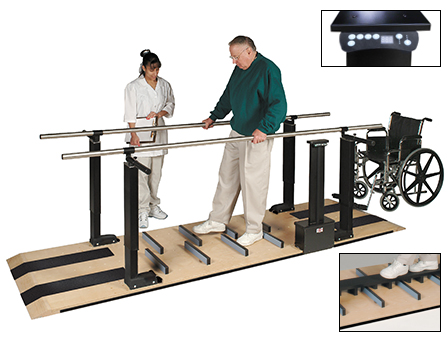

Model 1398 Patented Mobility Platform with Electric Height Bars

weight capacitywheelchair accessible
  • Motorized height adjustment from 29” to 44” high.
  • (4) Direct-drive synchronized lifting columns.
  • Control panel located near entry end of bars.
  • Push button controls and digital bar height readout.
  • 1 ½” dia. Stainless Steel handrails.
  • Width adjusts manually from 15” to 28” wide with easy-to-use control knobs.
  • Width between uprights is 26 ½”.
  • 10’ Satin-finish hardwood platform with recessed grommeted holes on surface.
  • Placement Ladder consists of (11) variably placed Ladder Steps.
  • Each Ladder Step has dowel pins, which fit into grommeted holes of platform. The spacing and location of Ladder Steps can be easily adjusted for patient’s gait training.
  • Balance Beam is 6’5” long x 6” wide x 3” high. Balance Beam is equipped with anti-slip surface and dowel pins.
  • Tapered ends with anti-slip tread for easy wheelchair access.
  • Control box is double insulated for safety and equipped with 2-prong plug and cord.
  • 110V, 60Hz, 2.5 Amps.
  • English
  • Metric

Weight Capacity: 400 lbs.

MODEL #
LENGTH
WIDTH*
HEIGHT
1398
10'
15" - 28"
29" - 44"
*Platform is 38" wide

Weight Capacity: 181 kg

MODEL #
LENGTH
WIDTH*
HEIGHT
1398
305 cm
38 - 97 cm
74 -112 cm
*Platform is 97 cm wide

1398
